Miter Transmission 1pcs 1:10 1:20 Right Angle Corner Device 6mm 8mm Shaft 20 Teeth Gear 90 Degree Worm Gear Reduction Gearbox Bevel Gear Steerer Pinion Mechanical (Color : 8mm Shaft, Size : 1 Ratio

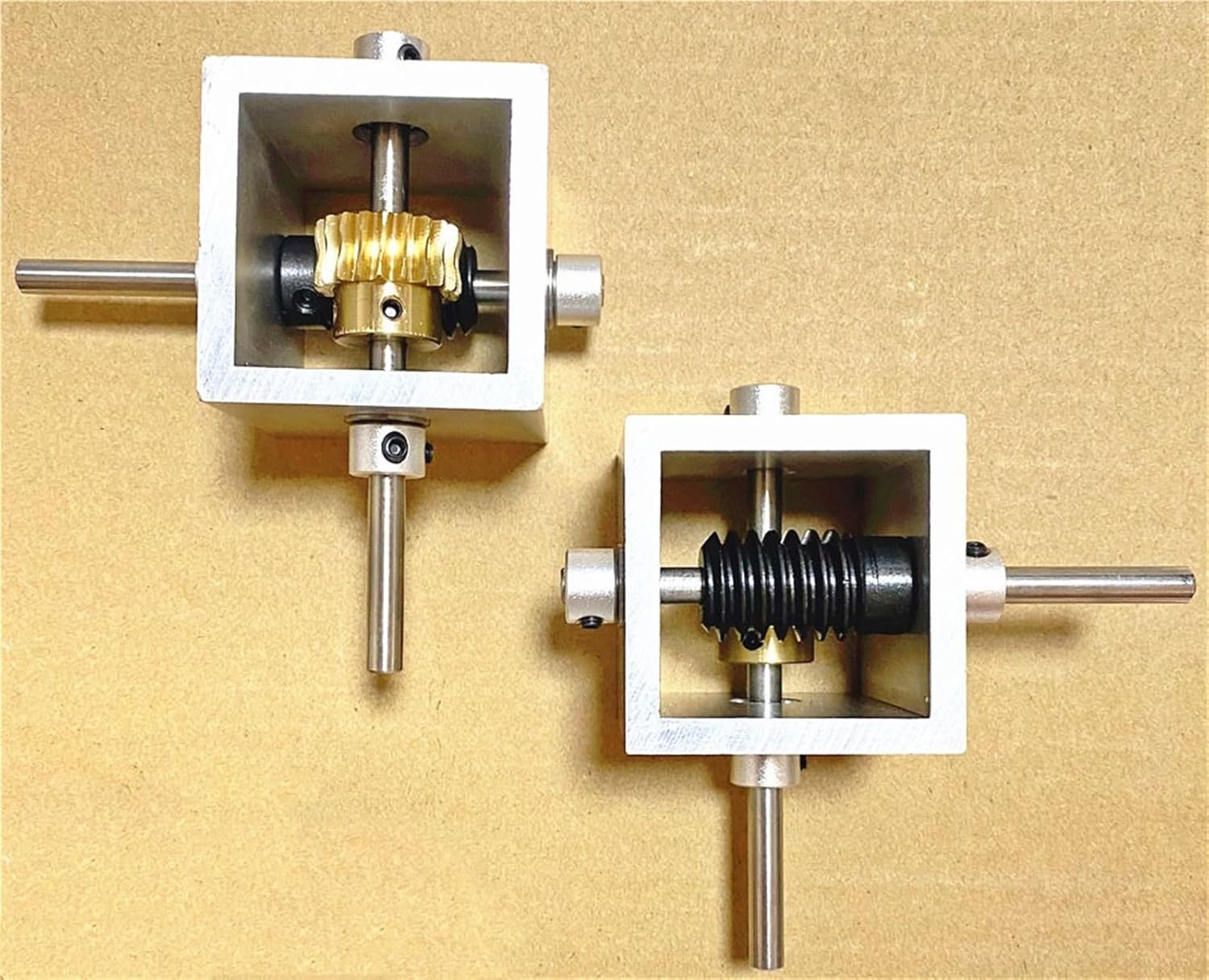

Name: 1:10 / 1:20 Worm Reduction GearboxFrame material: aluminum alloyWorm material: 45#steel;Turbine material: copperWorm diameter: 18mmWorm length: 32mmNumber of worm gear teeth: 20TWorm gear outer diameter: 22mmTooth width: 10mmStep outer diameter: 17mmStep thickness: 8mmInner hole of worm gear: 6mm/8mmInstallation center distance: 18mmOverall weight of the gearbox: about 0.25kgManual measurement, there will be slight errors;The punching and cutting process of aluminum alloy processing may produce scratches;As shown in the figure, the product has no fixed mounting holes and no cover on the top and bottom;It is a simple reducer and cannot be used for high-speed operation; (used in places where accuracy is not high)

• Name: 1:10 / 1:20 Worm Reduction Gearbox
• Frame material: aluminum alloy, Worm material: 45#steel; Turbine material: copper
• Worm diameter: 18mm, Worm length: 32mm, Number of worm gear teeth: 20T, Worm gear outer diameter: 22mm, Tooth width: 10mm
• The bevel gear is cast with exquisite production technology, the size is precise, the gear teeth meshing is complete and tight, and the power transmission ratio is stable
• Widely used in conveying, agricultural equipment, textile machinery, printing machinery, CNC machines, 3D printers, models, robot DIY, automotive applications, etc.
